RANGE OF INDUSTRIAL SPRAY NOZZLES

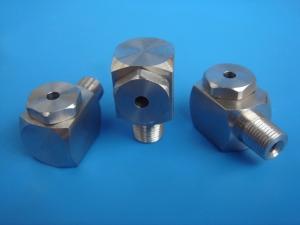

Tangential Entry Spray Nozzle



Tangential Entry Hollow cone spray nozzles are best for application requiring good atomisation of liquids at lower pressures or where quick heat transfer is needed. These nozzles also feature large and unobstructed flow passage that provides a relatively high resistance to clogging. The flow pattern is essentially a circular ring of liquid. There are available in the following types:

  • Tangential Entry
  • Inline (Axial) Entry
  • Spiral Hollow Cone

Applications

Cooling & Washing of Gas

Features

High resistance to clogging
It is designed to be vaneless with two piece construction, ensuring non-clogging

Technical Specifications

Flow Rate: 1 LPM to 530 LPM
Pressure: 2.0 Kg/cm² or specified
Spray Angle: 60°, 80°, 90°, 120°, and 130°
End Connection: 1/4" to 1" BSP/BSPT/NPT (m/f)
M.O.C.: S.S. 316, 304, Brass, PVC, PVDF, PP, and Teflon
